How Does SkyEdge II-c Compare?
SkyEdge
Outbound/Inbound carrier
Outbound Carrier:
Inbound Carrier:
- Standard: DVB-S
- Carrier bit rate: 340Kbps - 66Mbps
- Modulation: QPSK or 8PSK (optional)
- Coding: Viterbi & Reed Solomon or Turbo
- FEC rate: 1/2, 2/3, 3/4, 5/6, 7/8
- Access Scheme: Combined TDMA, FDMA
- Bit rate: 60Kbps – 2Mbps
- Supporting different bit rates for different work groups
- Modulation: GMSK
- Coding: Turbo coding FEC ~3/4, ~7/8
Outdoor/Indoor Unit
Outdoor Unit:
Indoor Unit:
- Antenna size (typical):
- Ku-Band: 0.55 m to 1.2 m; C-Band: 1.8 m
- Operating Temperature: -40 to +60 C
- Humidity: Up to 100%
- Transmitter ODU:
- 1W, 2W or 4W Ku-band, 2W C or Ext C band
- LNB: Standard TVRO type
- RF Input/Output: Two F connectors, 75 Ω female
- Data Interface: 100BaseT, Async RS-232 (optional)
- Operating Voltage: AC: Wide range 100-240V
- Size: 300mm x 233mm x 50mm
- Environmental Conditions:
- Operating Temperature: -5 to +50 C
- Storage Temperature: -40 to +70 C
- Relative Humidity: Up to 90%

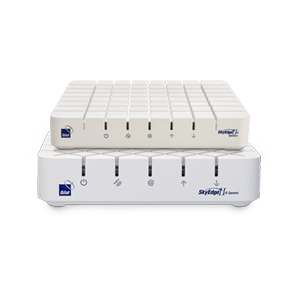

SkyEdge II
Outbound/Inbound carrier
Outbound Carrier:
Inbound Carrier:
- Standard: DVB-S2-ACM
- Framing and Encapsulation MPEG Normal/Short frames
- Carrier Data Rate: Up to 135 Mbps
- Carrier Rate: 300Ksps - 45Msps (in 1Ksps steps)
- Modulation: QPSK, 8PSK, 16APSK, 32ASPK
- Coding: LDPC & BCH (DVB-S2)
- BER: Quasi Error Free as per EN302307
- FEC Rate: (DVB-S2) 1/4, 1/3, 2/5, 1/2, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
- Access Scheme: MF-TDMA DVB-RCS Based: RBDC, VBDC, RBDC, FCA
- Channel Rates: 128Ksps-2.56Msps
- Modulation: QPSK, 8PSK
- Coding: DVB-RCS based Turbo coding FEC 1/2; 2/3; 3/4; 4/5; 6/7
Outdoor/Indoor Unit
Remote Outdoor Unit:
Remote Indoor Unit:
- Antenna Size (typical): Ku-Band: 0.55 m to 1.2 m C-Band: 1.8 m
- Operating Temperature: -40º to +60º C
- Humidity: Up to 100%
- Transmitter ODU: Linear 2W and 4W Ku-Band or Ext Ku-Band, 4W and 8W C or Ext C Band, 4W Ka-Band Transceiver
- LNB: Standard TVRO type, PLL LNB
- RF Input/Output: Two F connectors, 75 Ω female
- Data Interface: 1 to 4 Ethernet 10/100BaseT
- Operating Voltage: 100-240V AC or 10-59V DC
- Security: AES-128 or AES-256 encryption

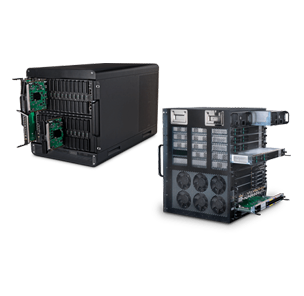

IP & Hub Details
IP Features:
Hub Interface:
NMS:
Hub Mechanical & Compliances:
- Enhanced IP Features: BGP, RIP, DHCP, NAT/PAT, IGMP, IP prioritization, ACL, DiffServ, Multi VRF & VLAN
- Other Features: Bandwidth on Demand, Multiple satellite support, Multiple outbound, TCP & HTTP acceleration, Multi-Level QoS
- RFT: L-Band
- LAN: 100BT/GbE
- Platform: Windows Server 2012 with SQL DB, Server - Client system
- Standards for NBI: SNMPv2c, XML, SOAP
- VNO & GIS: Visualization of a network on a geographic map. VNO support with SKYVNO
- Dimensions: Starting from one 19” rack for Basic redundant hub
- Power Consumption: AC 110/220V @ 50/60 Hz, typical 2 KVA (changes according to configuration)
- Operating Conditions: 0° to +40° C, up to 90% relative humidity
- Standards Compliance: EMC - ETSI EN 300 386, FCC CFR 47, Part 15, Safety - EN 60950, Company - ISO 9001

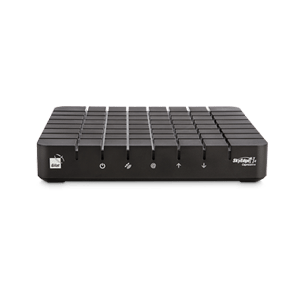

SkyEdge II-c
Forward/Return Channel:
Outbound Carrier:
DVBS2x ACM
Return Channel MF-TDMA:
(WHEN USING DVB-S2 AS FORWARD CARRIER)
(WHEN USING DVB-S2X AS FORWARD CARRIER)
Return(SCPC)
- DVB-S2 ACM
- Carrier rate per NS: 1.5Msps-65Msps (235Mbps)
- Modulation: QPSK, 8PSK, 16APSK, 32APSK
- Coding: LDPC
- FEC: 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9
- Roll-off: 1.1, 1.2
- Carrier rate per NS: 1.5Msps-500Msps (3.5Gbps)
- Modulation: QPSK, 8PSK, 16APSK, 32APSK, 64APSK, 256APSK
- Coding: LDPC
- FEC: All FECs
- Roll-off: 1.05, 1.1, 1.2
- Access Scheme: MF-TDMA, Adaptive
- Carriers rates: Multi Channels 128Ksps - 6Msps
- Max Data Rate: 12Mbps (accelerated)
- Modulation: BPSK, QPSK, 8PSK, 16QAM
- Coding: TPC
- TDMA FEC: 1/2, 2/3, 3/4, 4/5, 6/7
- Roll-off: 1.2
- Spread Spectrum FEC: Not Supported
- Access Scheme: MF-TDMA, Adaptive
- Carriers rates: 128Ksps - 30Msps
- Max Data Rate: 100Mbps (accelerated)
- Modulation: BPSK, QPSK, 16QAM
- Coding: LDPC
- TDMA FEC: 1/4, 1/3, 2/5, 1/2, 2/3, 4/5, 6/7
- Roll-off: 1.2
- Spread Spectrum FEC: BPSK 1/4, 1/3, 2/5, 1/2
- SCPC Symbol Rates: 1.5 – 40Msps
- SCPC waveform: DVB S2 ACM
- SCPC Modulation: QPSK, 8PSK, 16APSK
- SCPC FEC: 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9
IP & Hub Details:
IP Features:
Hub Interface:
Management:
Compliances:
- IPv4/IPv6, TCP, UDP, ICMP, DHCP, NAT/PAT, DNS Caching, cRTP, IGMPv2/v3, SIP, DiffServ, VLANs, RIPv2, Static Routes, BGP
- RF: Tx: 950 - 2450 MHz; Rx: 950 - 2150 MHz ; QMA / N-type, 50 ohms
- LAN:10/100/1000 BaseT and 10Gb optic
- System: Single centralized TotalNMS
- Framework: ITU / IETF standards-based
- GUI Interface: Web-based over HTTPS
- Access Control: Per User permission management
- Northbound Interface: SOAP over HTTPS, SNMPv2c
- IDU Antenna Interface: Gilat’s Antenna ICD, OpenAMIP
- Certifications: RoHS, CE, ETSI EN 300 386 V1.4.1:2008-04, ETSI EN 301 489-1 V1.8.1:2008-04, ETSI EN 301 489-12 V2.2.2:2008-09, AS/NZS CISPR 22:2006, FCC CFR 47 Part 15 Subpart B, Industry Canada ICES-003:04
- Power: Universal AC 110 - 240V 50 - 60Hz
- Operating Conditions: 0° to +35° C, up to 90% relative humidity
With the Future in Mind
Highly expandable, SkyEdge II-c is scalable and able to support the increased bandwidth needs of SCADA, video surveillance, and other IIoT applications. Upgrading to SkyEdge II-c also enables your business to pursue technology that will give you the competitive edge with the utilization of powerful data and analytics programs and cut costs on operations. The SkyEdge II-c indoor unit includes a full-featured IP router supporting features such as DHCP, NAT/PAT, VLANs, routing protocols, IPSEC client and IGMP. SkyEdge II-c achieves faster speeds through TCP acceleration, HTTP acceleration, DNS caching, pre-fetching, compression and web optimization, IP header compression and more.
